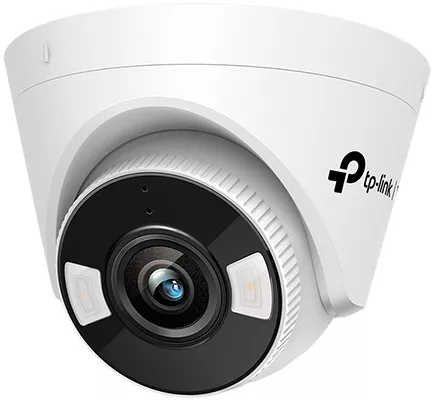

Camera supraveghere turret fullcolor 2.8mm vigi tp-link

Descriere:
Rezolutie 4MP HD: Cei 4 megapixeli oferă înregistrări video clare, la o rezolutie ridicată de până la 2560×1440.
Full-Color: Prin senzorul high-sensivity si LED-urile integrate, se pot realiza înregistrări color chiar si în timpul noptii.
Smart Detection: Camera VIGI dispune de capacităti inteligente de detectare pentru miscare, încălcarea perimetrului sau obstructionarea camerei, trimitând notificări instant.
Compresie video H.265+: Camera transmite înregistrări video de o calitate ridicată, comprimate pentru a economisi din spatiul de stocare si pentru a reduce din costurile de monitorizare, fără a afecta calitatea.
Two-Way Audio: Permite comunicarea cu cei din fata camerei, prin microfonul si difuzorul integrate.
Suport ONVIF3: Camera poate lucra alături de alte camere TP-Link VIGI, sau de la alti producători, pentru a crea o retea performantă si versatilă.
PoE/12V DC: Cele două optiuni de alimentare oferă o flexibilitate mai mare pentru instalarea retelelor de supraveghere.
Control de la distantă: Aplicatia TP-Link VIGI permite vizualizarea si managementul de la distantă a retelei de supraveghere, direct de pe telefon sau tabletă.

CAMERĂ
Senzor Imagine: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Iluminare Minimă: 0 lux cu IR/white Light
Mecanism Zi/Noapte: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Lentile: Lentile fixe (2.8 mm/4 mm)
Aperture:
2.8 mm: F1.6
4 mm: F1.6
Lens Mount: M12
Unghi de Vizualizare (2.8 mm)
FOV orizontal: 102°
FOV vertical: 55°
FOV diagonal: 122°

(4 mm)
FOV orizontal: 79°
FOV vertical: 43°
FOV diagonal: 93°
Distantă Operare Infrarosu Până la 30 m
Illumination Distance Până la 30 m
Pan/Tilt Range Pan: între 0–360°
Tilt: între 0–85°
Digital Noise Reduction 3D DNR
WDR: DWDR

LENS
Type: Fixed Focal Lens
Focal Length: 2.8/4 mm
Aperture:
2.8 mm: F1.6
4 mm: F1.6
FOV 2.8mm:
Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
4mm:
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount M12
DORI Distance 2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080
Bit Rate Control CBR, VBR
Compresie video Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Unified/ Scheduled/ Auto
ANGLE ADJUSTMENT (MANUAL)
Range Pan: 0° to 360°,
Tilt: 0° to 85°
Rotate: 0° to 360°
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

AUDIO
Comunicaţie Audio Two-Way Audio
Intrare Audio Yes
Iesire Audio Yes
Compresie Audio Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)

REȚEA
Securitate: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 3 Main Streams si 3 Sub-Streams
Web Browser:
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
Cloud: Yes
ONVIF: Yes

INTERFEȚE
Interfeţe de Reţea: 1× Port Ethernet RJ45 10/100 Mbps Self-Adaptive
Audio Input: Microfon integrat
Audio Output: Difuzor integrat
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
Buton resetare
Slot microSD
On-board Storage Slot pentru card microSD integrat (suportă carduri microSD de până la 256 GB; cardul se vinde separat).
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A

ALERTE ȘI MANAGEMENT EVENIMENTE
Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push

GENERAL

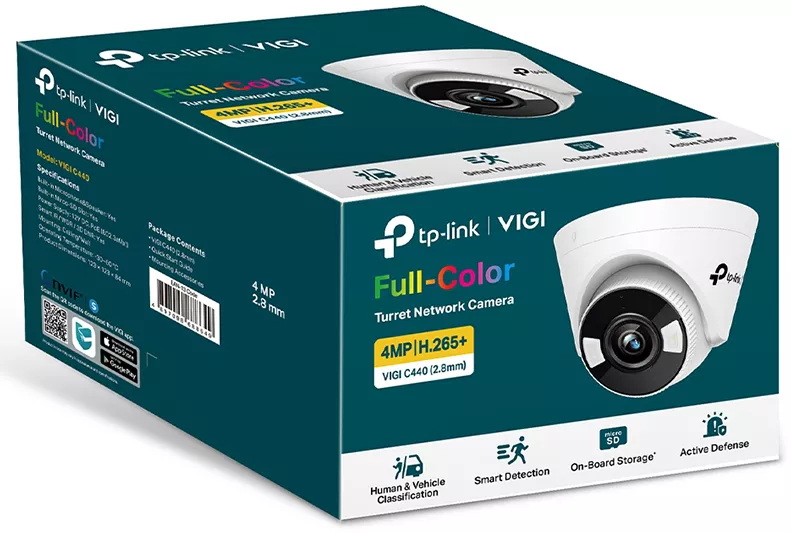

Continut Pachet:
- Cameră de supraveghere VIGI
- Ghid de instalare rapidă
- Accesorii de montare
Temperatură de operare: -30 ... 60 °C
Storage Temperature: -40 ...60 °C
Operare în conditii de umiditate: 95% or Less (Non-Condensing)
Dimensiuni (H x L x l): 123 × 123 × 84 mm
Material: Plastic
Greutate:195 g
Caracteristici generale: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight: 0.25 Kg
Gross Weight: 0.4 Kg
Power Consumption: 12V DC: maxim 5.5W
PoE: Class 0
Power Supply 12V DC ± 5%, Conector alimentare coaxial de 5.5mm
PoE (802.3af/at, class 0)
Protection N/A
Product Dimensions (L x W x H) 123× 83× 123 mm
Certificări CE, FCC, RCM, BSMI, VCCI, RoHS

VIDEO/IMAGINE
Compresie Video Main stream: H.265/H.264
Sub-Stream: H.265/H.264
Rată Frame-uri şi Rezoluţii Main Stream
Cadre pe secundă: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Rezolutie: 2560×1440, 2304×1296, 2048×1280, 1920×1080

Sub-Stream
Cadre pe secundă: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Rezolutie: 640×480, 352×288, 320×240
Setări Imagine Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevenire supraexpunere la lumină infrarosie
Video Bit Rate Main Stream: între 256 Kbps si 4 Mbps
Sub-Stream: între 64 Kbps si 512 Kbps
SMART FEATURE-SET
Smart Event: Area Intrusion Detection, Line-Crossing Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
